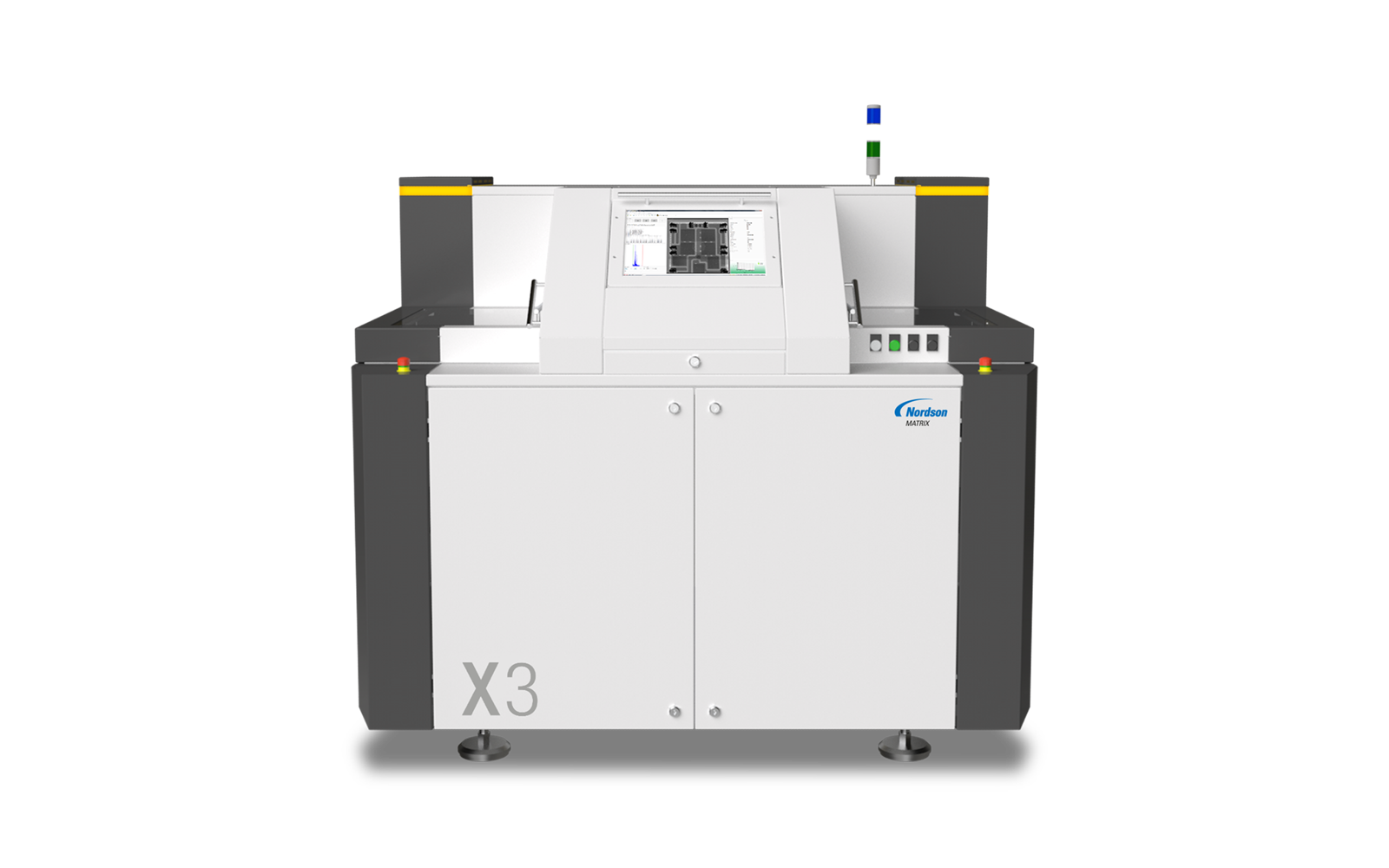

X3

The X3 is an automatic X-ray inspection system featuring combined Transmission and 3D-Technology for sophisticated high-speed inspection in electronic production. The system is based on the motion concept of the MatriX X2.5 AXI system. A newly developed 3D reconstruction software generates slice images for 3D analysis of solder joints. Main applications are double-sided boards with critical overlapping areas.

• High Speed Inline AXI system
• Maintenance free sealed X-ray tube and digital detector technology
• 5-axes programmable motion system with linear drive sample table for high speed inspection mode
• Inline board handling with automatic width adjust
• Automatic grey-level and geometrical calibration
• Barcode scanner (1D/2D) for serial number and product type selection

Transmission (2D)
Off-axis (2.5D)
3D SART

4-5 images/sec
3-4 images/sec
2sec/FOV

standard:
130kV/40W

optional:
120kV/40W

standard:
CMOS Flatpanel Detector
(14 bit, 1,5k x 1,5k, 75 µm)

optional:
CMOS Flatpanel Detector
(14 bit, 2,3k x 2,3k, 50 µm)
